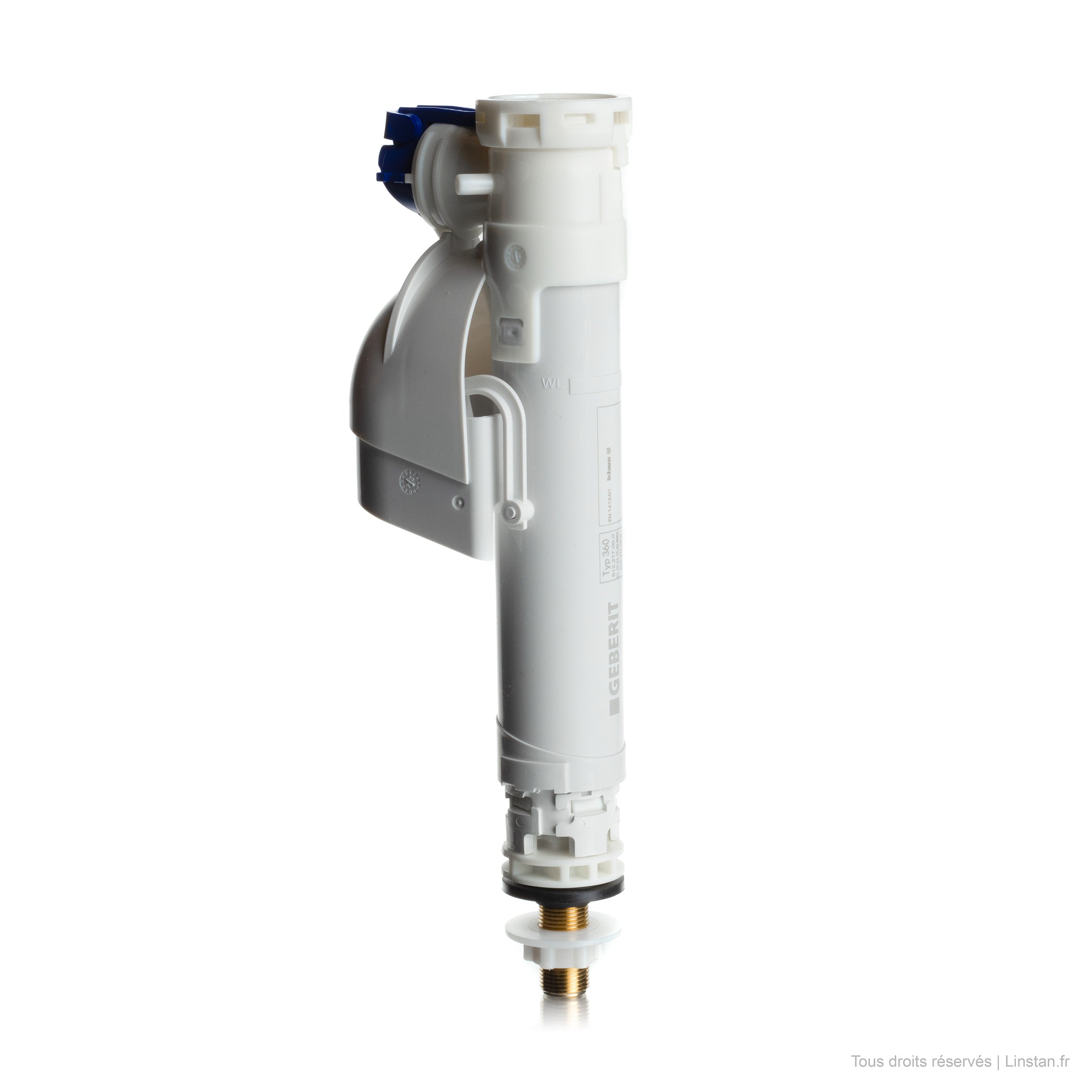

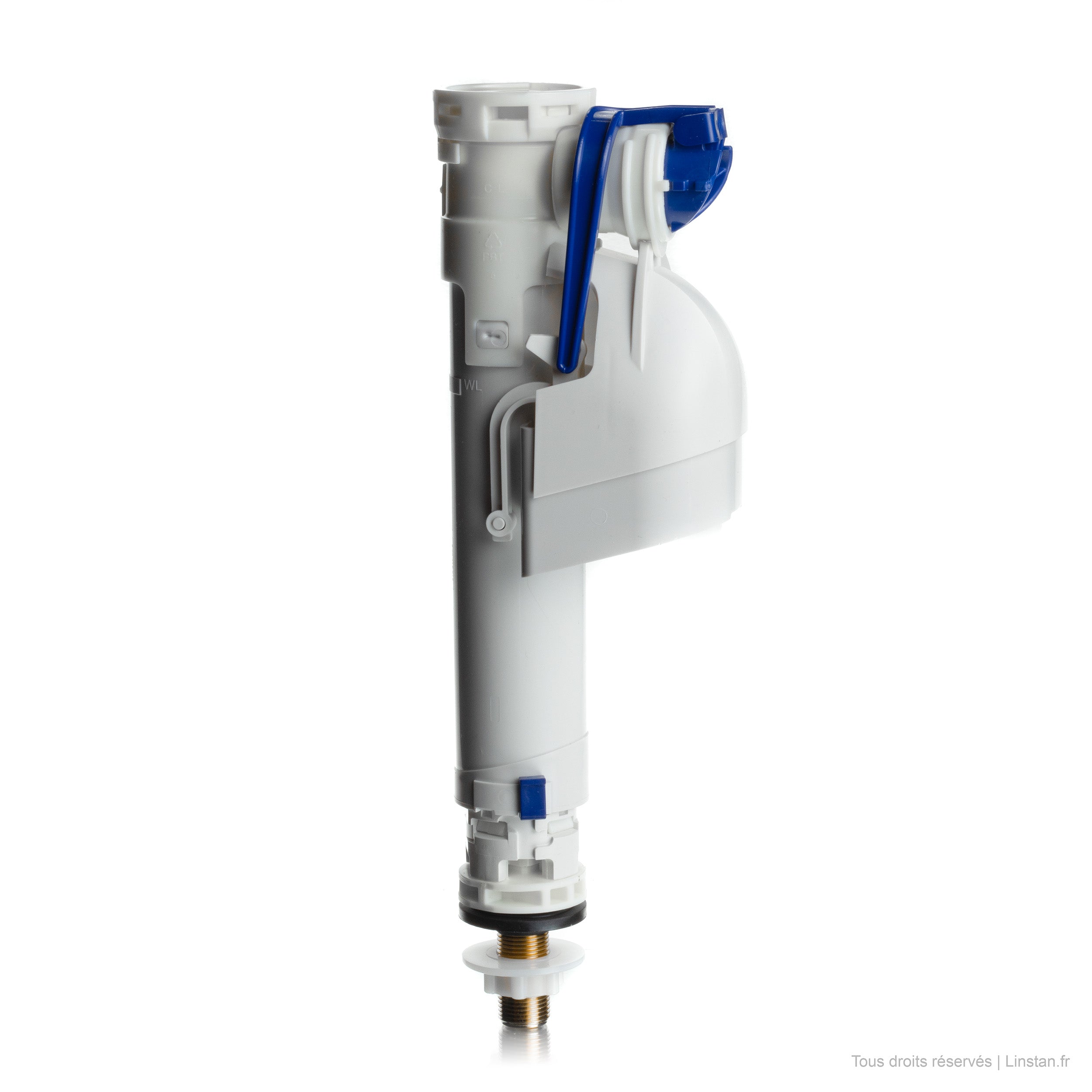

Geberit 360 type float valve | Ref: 281.214.00.1 | For exposed porcelain cisterns (Porcher) or concealed cisterns (Wici concept)

This is the Geberit type 360 ​​float valve with brass nozzle, connection and mounting accessories. For exposed porcelain or plastic cisterns (all brands), reference 281.214.00.1.

I'm not going to beat around the bush: this is the best!

• Robust against limestone/rainwater
• Silent
• Easy to repair

Please note, there are several versions of this float valve:

Geberit type 380 float valve for UP320 and UP300 concealed cistern
Geberit type 380 float valve for Delta concealed cistern
Geberit type 380 float valve with flexible hose for Twinline concealed cistern
Geberit float valve type 380 for porcelain cistern and plastic cistern
Geberit float valve type 333 for certain Geberit plastic cisterns
Geberit type 360 ​​float valve for bottom feeds
(you are already on the product page)

If you want to be sure of compatibility, find the reference inside your Geberit cistern and enter it in my search bar.Identify your Geberit cistern.

By purchasing from my store, you reward my advice and content,
thank you🫶

Summary:

1. Evolution
2. Functionality
3. Malfunction
4. Successful Geberit maintenance


1. Evolution

The resistance:
This Geberit float valve is resistant to rainwater and limescale.

Water level adjustment:

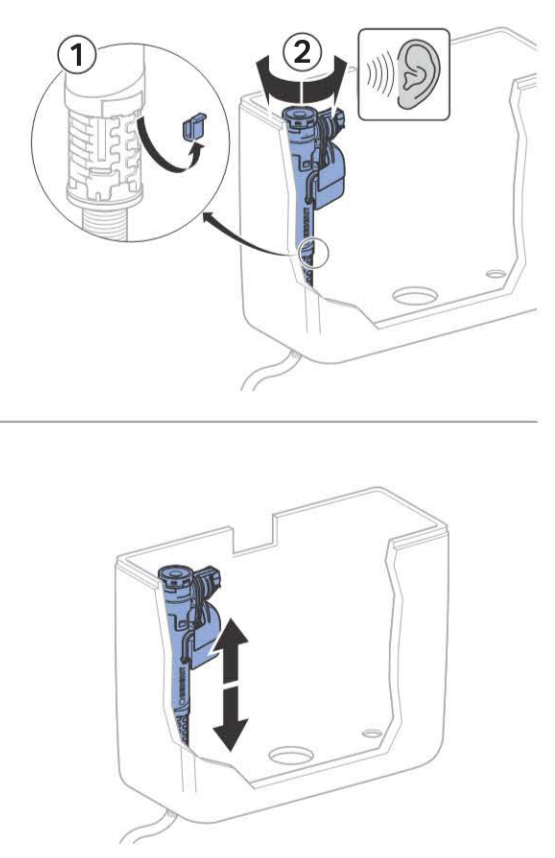

To adjust the water level, turn off the water, unclip the small blue plastic at the bottom, turn it 1/4 turn in one direction or the other, then raise or lower the main trunk depending on whether you want more or less water. Then, lock it with a 1/4 turn in the opposite direction. Then reinstall the blue plastic at the bottom. Repeat this process until it is at the height you want.

2. Features

Facility :
This Geberit float valve can be attached to two types of tanks: porcelain or plastic of any brand.
If you already have an identical Geberit float valve, you can remove the brass end cap by unscrewing the white nut and swap them. This avoids unscrewing the nut on the small shut-off valve next to it. It's plug and play, leak-free, and 100% compatible.

Silent :
Its design makes it one of the quietest on the market.

Repairability:
This float valve has been cleverly designed to allow easy access to the membrane. In addition, Geberit spare parts are available for 50 years.


3. Malfunctions

The tank fills very slowly:
If your tank takes a long time to fill, you need to replace the float valve diaphragm. It's probably torn. If your float valve is in poor condition, such as encrusted with limescale, you may want to consider replacing it entirely.

The filling does not stop:
The problem probably comes from the Geberit membrane.

Limestone:
When the float valve is too encrusted with limescale, it can become jammed and no longer perform the up-and-down movements of the float correctly. I advise you to clean it thoroughly or replace it if it is in really bad condition.

4. Successful Geberit maintenance

Successful repair
Successfully maintaining your Geberit wall-hung toilet is super simple. You need the right disassembly/reassembly guide and the corresponding spare parts. Lindsay and I managed to do just that by combining the two. To do this, simply identify your cistern by noting the reference number inside, then enter it into my Geberit search bar.

We'll keep in touch ;)
Stan
