Geberit type 380 float valve with copper installation kit | Ref: 240.784.00.5 | For old concealed cisterns

Pre-order - Delivery within 15 days

SKU: P854
Sale price
€75,90 TTC €63,25 HT

Hello, it's Stan!
This Geberit type 380 float valve , reference 240.784.00.5, is installed in old Geberit cisterns:

Built-in tanks 10,400
15,000 built-in tanks
Built-in tanks 10,800
Built-in tanks 10.500 / 10.520
Built-in tanks 10.600 / 10.620

Old generation of float valve reference: 246.191.00.5 and 240.705.00.1

By purchasing from my store, you reward my advice and content, thank you 🫶

Do you have any doubts about compatibility?
Identify your Geberit tank , you will only find the parts specific to your tank.
It takes 2 minutes.

Included in the offer
Joint membrane Geberit inclus robinet flotteur

Le joint est INCLUS
Le joint membrane du robinet flotteur (valeur 8€).

Tuto linstan comment installer sa chasse d'eau Geberit

Ma vidéo remontage + 3 BONUS
Reçois par email mon tuto de remontage et les réglages de consommation, de niveau d’eau et d’anti-éclaboussure.

Sticker Qrcode maintenance chasse d'eau Linstan

Ton sticker de maintenance OFFERT
Retrouves les tutos et les pièces détachées de ton réservoir. L’indispensable pour tes futures entretiens.

Garantie de réparer sa chasse d'eau avec Linstan

Réparation GARANTIE
Avec LINSTAN, tu as la certitude de réparer ta chasse d'eau. On reste en contact par chat ou visio jusqu'à l'installation.

Retour article gratuit pendant 30 jours

See product return terms and conditions

Transforme ton panier en devis

Turn your cart into a quote

Facture avec TVA envoyé par mail

Invoice with VAT sent by email

DETAILS

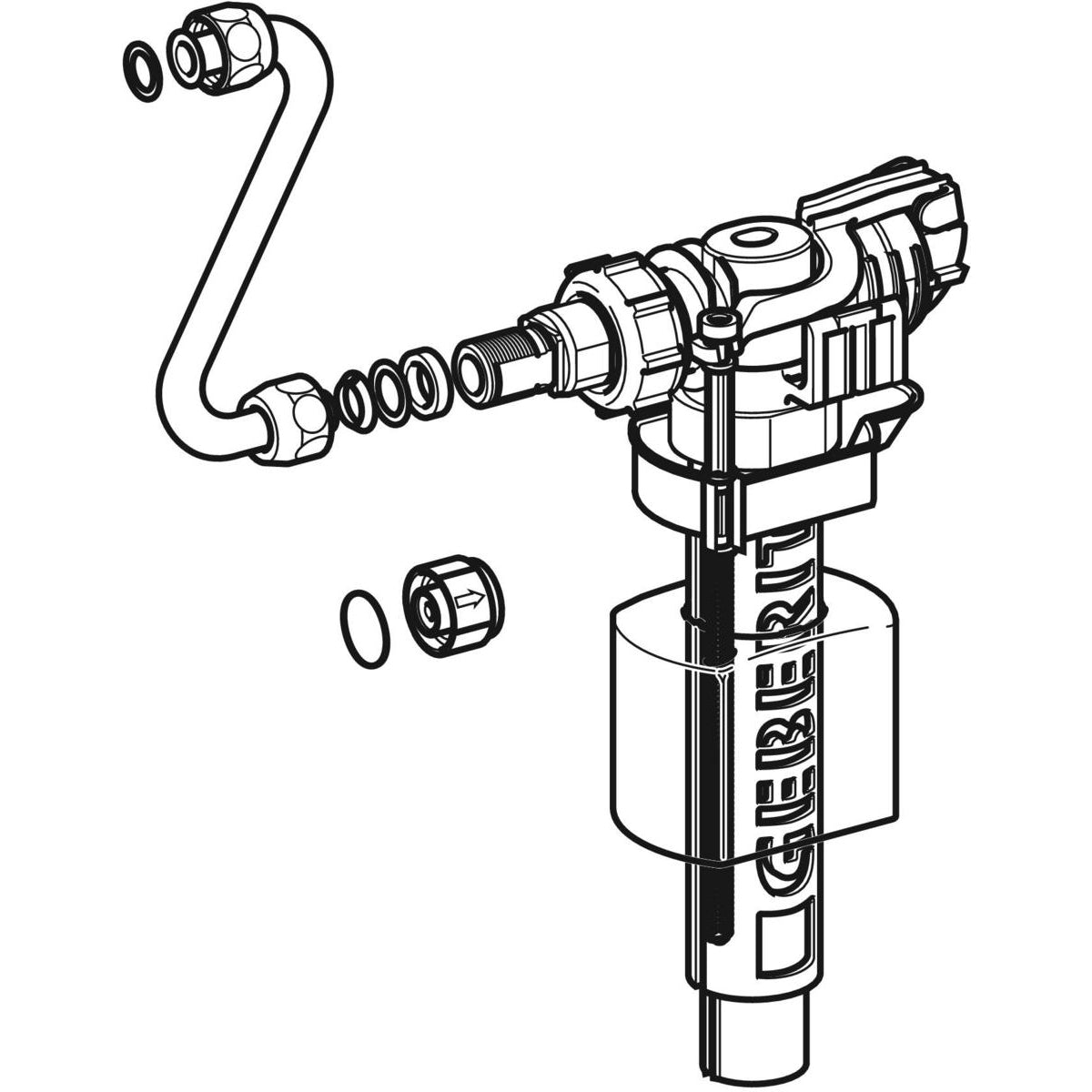

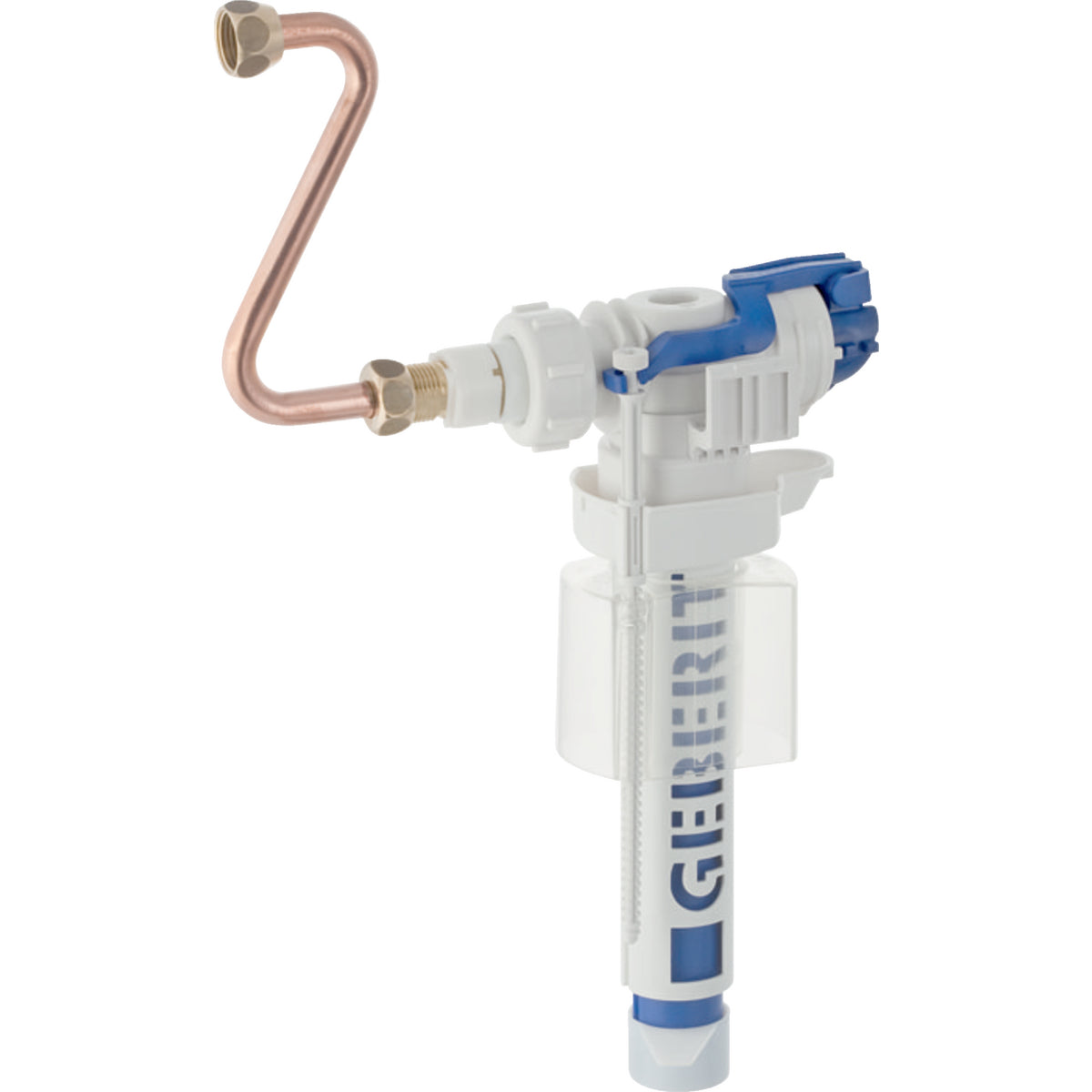

Here is theGeberit type 380 float valvewith copper connection create ideal for very old Geberit concealed cisterns models 10.400, 10.800, 10.500 / 10.520, 10.600 / 10.620 and 15.000, reference240.705.00.1.

I'm not going to beat around the bush: this is the best!

  • Robust against limestone/rainwater
  • Silent
  • Easy to repair

    If you want to be sure of compatibility, find the reference inside your Geberit cistern and enter it in my search bar.Identify your Geberit cistern.

By purchasing from my store, you reward my advice and content,
thank you
🫶

Summary:

1. Evolution
2. Functionality
3. Malfunction
4. Successful Geberit maintenance


1. Evolution

Visually
Geberit has updated this float valve. Previously, it was anthracite black/white and the hose had a different connection.

Water level adjustment:
Your Geberit float valve should already be installed in your water-filled tank.
Using the white rod extending from the float valve, you can adjust the water level in the tank. At the top of this rod, you have a dial:

  • If you turn it clockwise, you raise the water level.
  • If you turn it counterclockwise, you lower the water level.
  • Pulls mini-flush toilets to refresh the water level.

    2. Features

Facility :

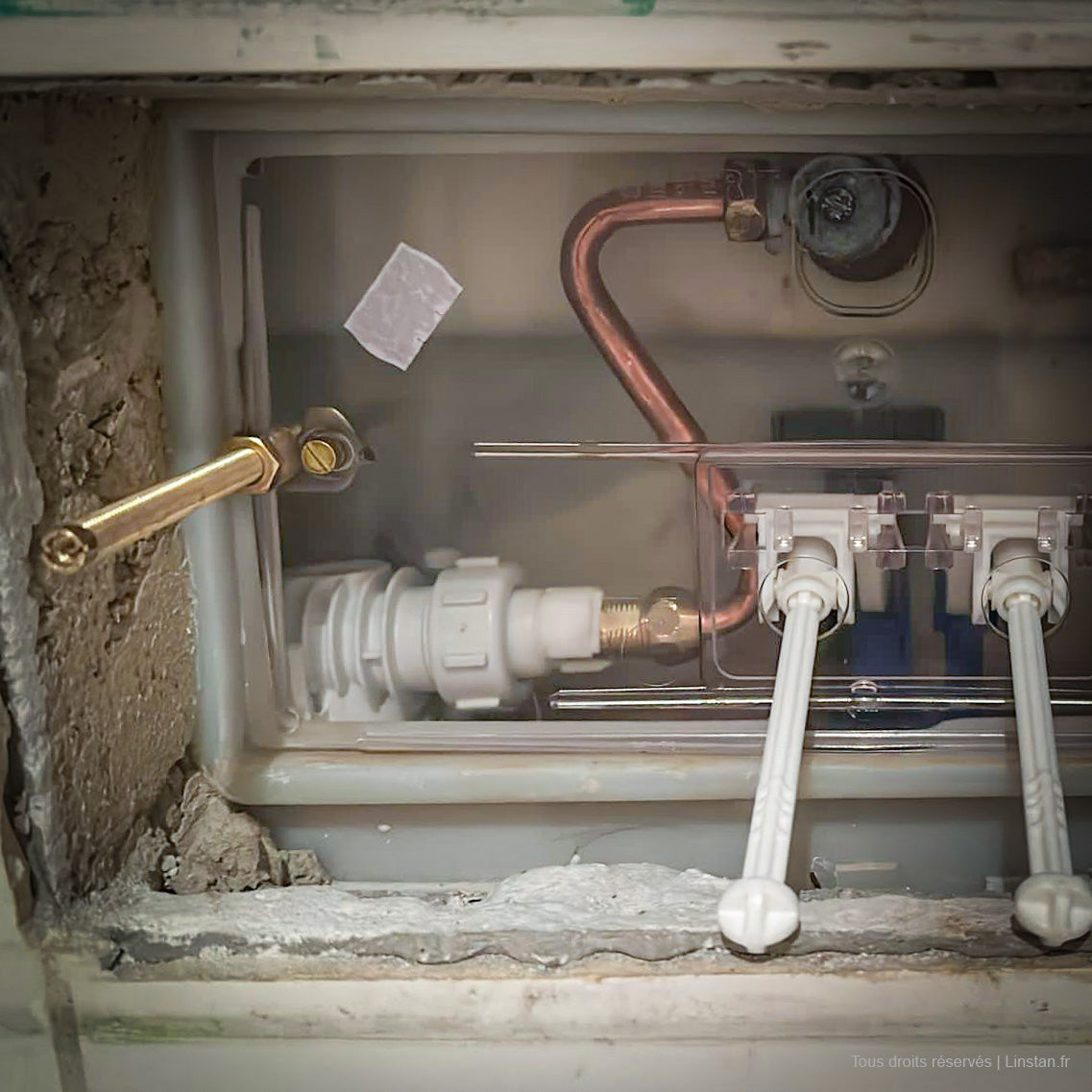

Thanks to the copper, the float valve connects to the shut-off valve and remains in place in the tank thanks to its rigidity.

Silent :
Its design makes it one of the quietest on the market.

Repairability:
This float valve has been cleverly designed to allow easy access to the membrane. In addition, Geberit spare parts are available for 50 years.


3. Malfunctions

The tank fills very slowly:
If your tank takes a long time to fill, you need to replace the float valve diaphragm. It's probably torn. If your float valve is in poor condition, such as encrusted with limescale, you may want to consider replacing it entirely.

The filling does not stop:
The problem probably comes from the Geberit membrane.

Limestone:
When the float valve is too encrusted with limescale, it can become jammed and no longer perform the up-and-down movements of the float correctly. I advise you to clean it thoroughly or replace it if it is in really bad condition.


4. Successful Geberit maintenance

Successful repair
Successfully maintaining your Geberit wall-hung toilet is super simple. You need the right disassembly/reassembly guide and the corresponding spare parts. Lindsay and I managed to do just that by combining the two. To do this, simply identify your cistern by noting the reference number inside, then enter it into my Geberit search bar.

We stay in touch ;)
Stan
